Lawrence Technological University
Senior Project II — Automated Report

Residential Home
Development

A comprehensive analysis of the residential construction process observed via YouTube time-lapse video, tracking every phase from initial site preparation to final landscaping and finishing.

5
Construction Phases
42
Peak Object Observations
100%
AI-Automated Analysis

Time-Lapse Video

This YouTube time-lapse serves as the primary data source for the entire report. Each frame was analyzed by the Gemini LLM, which identified and logged every visible object on site — from heavy machinery to building materials — generating the frequency and observation data used throughout this analysis.

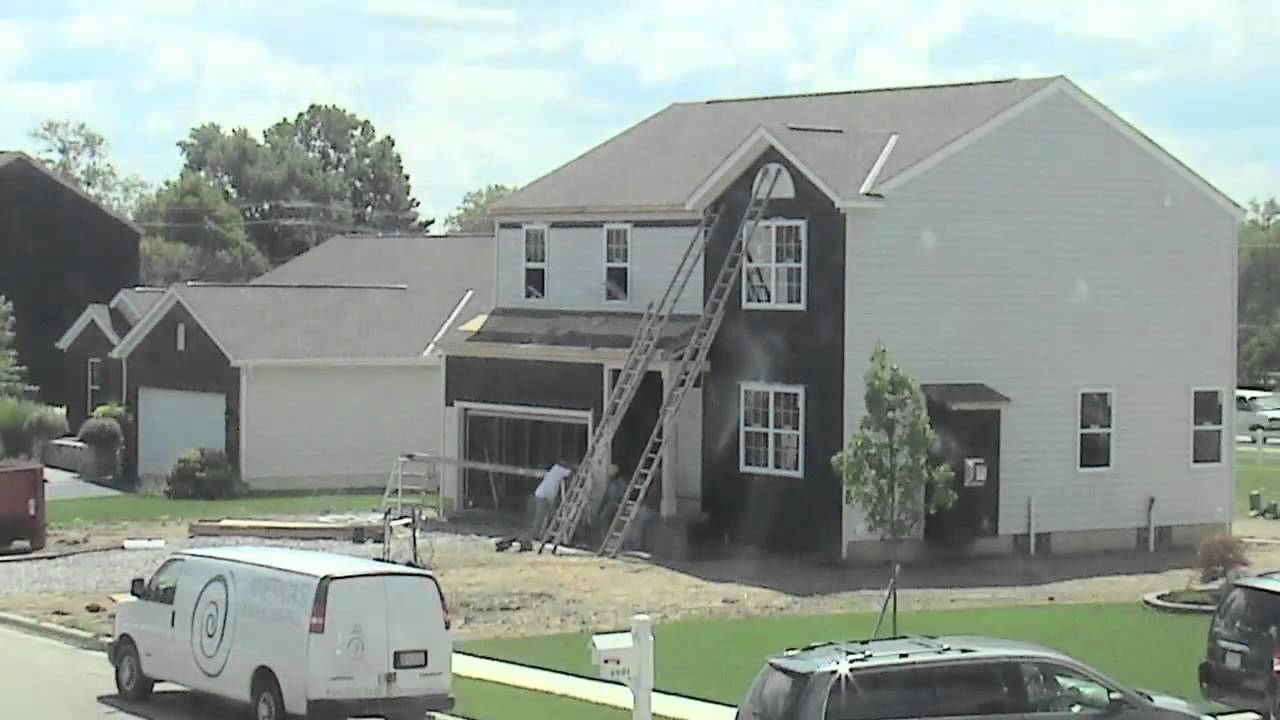

Video thumbnail
Residential Home Construction Time-Lapse
▶  Watch on YouTube  ↗

Project Phases

The construction followed a three-phase progression from raw land to finished residence. Each phase introduced distinct materials, equipment, and techniques — beginning with heavy earthmoving and foundation work, advancing through structural framing, and concluding with exterior finishing that transformed the skeleton into a livable home.

I
Phase I

Site Preparation & Foundation

  • Heavy earthmoving with excavators and dump trucks managing soil piles
  • Foundation walls using concrete forms, rebar, and wood forms
  • Concrete mixer trucks deployed for foundation pours
  • Underground pipe and utility pole installation initiated
Excavators and dump trucks on site
Earthmoving — excavators managing soil piles
Foundation walls with concrete forms
Foundation walls with rebar and concrete forms
Concrete mixer truck
Concrete mixer truck deploying for foundation pour
II
Phase II

Structural Framing

  • Skeleton built with lumber, wood framing — most observed material
  • Plywood sheets used extensively for wall sheathing and flooring
  • Roof trusses installed, completing the structural height
  • Scaffolding and wall framing evident throughout
Lumber and wood framing
Lumber and wood framing — most observed material
Plywood sheets for wall sheathing
Plywood sheets used for wall sheathing and flooring
Roof trusses installation
Roof trusses marking completion of structural height
III
Phase III

Exterior Finishing & Closing

  • Structure enclosed with siding, windows, and doors
  • Exterior finished with brick accents and white siding
  • Driveway, curbs, and utility poles finalized
  • Roofing shingles applied following truss placement
Siding windows and doors
Exterior enclosed with siding, windows, and doors
Brick accents and white siding
Brick accents and white siding on finished exterior
Driveway and curbs
Driveway, curbs, and utility poles finalized

Material & Equipment Frequency

By tallying how often each object appeared across video frames, this table reveals which materials and equipment were most critical to the project. Lumber dominated with 42 observations — nearly double most other items — confirming that structural framing was the longest and most labor-intensive phase. Construction debris closely followed, reflecting the continuous cleanup effort required throughout the build.

Object Frequency Primary Use Case
Lumber / Wood Framing
42
Structural skeleton and internal framing
Construction Debris
38
Ongoing site maintenance and waste management
Plywood Sheets
35
Wall sheathing, roofing, and flooring
Construction Dumpster
26
High-volume waste management on site
Dirt / Soil Piles
24
Site grading and foundation excavation
Construction Fencing
22
Property demarcation and safety
Excavator
15
Initial earthmoving and trenching
Ladder
14
Multi-level access during framing and siding
Roof Trusses
12
Prefabricated structural roof assemblies
Mailbox
10
Permanent fixture indicating occupancy readiness

Histogram data generated from JSON outputs produced per-frame using the Gemini LLM, tracking object frequency from construction start to project completion.

Frequency histogram
Object frequency histogram — generated from Gemini LLM JSON frame outputs

Logistics & Safety

Effective site management ran in parallel with construction at every stage. Waste removal, perimeter security, and material delivery were not one-time tasks but ongoing operations observed throughout the entire build timeline. The consistent presence of dumpsters, fencing, and contractor vehicles highlights the organizational discipline required to keep a residential project on schedule and safe.

🗑️

Waste Management

A construction dumpster was consistently present to manage the high volume of construction debris generated during framing and finishing — observed 26 times across the timeline.

Construction dumpster
Dumpster managing high-volume construction debris
🚧

Site Security

Construction fencing (22 observations) and orange traffic cones were deployed throughout the build to demarcate property boundaries and maintain public safety near the street.

Construction fencing and cones
Fencing and orange cones demarcating site boundaries
🚛

Contractor Support

Various flatbed trucks, pickup trucks, and trailers were present daily to deliver building materials and support on-site workers throughout every phase of the project.

Flatbed and pickup trucks
Flatbed trucks delivering building materials daily

Key Object Statistics

This chart visualizes the relative dominance of each material and piece of equipment across the full construction timeline. The steep drop-off from lumber (42) to excavator (15) illustrates how the project shifted from a logistics-heavy early phase to a materials-heavy framing phase — with debris management remaining a constant throughout both.

Lumber / Wood Framing
42
Construction Debris
38
Plywood Sheets
35
Construction Dumpster
26
Dirt / Soil Piles
24
Construction Fencing
22
Excavator
15
Ladder
14

Project Milestones

Each milestone marks a distinct shift in the site's activity and visual appearance. Moving from underground infrastructure to towering roof trusses, and finally to freshly planted sod, these stages capture the full arc of construction — from an empty lot to a finished property ready for occupancy.

Foundation & Substructure

Earthmoving & Base Works

  • Excavators and dump trucks managing soil piles
  • Concrete mixer trucks and concrete hoses deployed
  • Rebar, concrete forms, and wood formwork for foundation walls
  • Pipes and utility poles for underground infrastructure
Framing & Enclosure

Structural Build-Up

  • Core structure from lumber, wood framing, and plywood
  • Roof trusses, scaffolding, and wall framing installed
  • Window frames, door frames, and roofing shingles added
  • Pre-assembled structural components delivered on-site
Site Logistics

Support & Operations

  • Construction dumpster for continuous debris management
  • Portable toilet, utility sheds, and red storage container
  • Flatbed trucks and trailers for material delivery
  • Survey and wooden stakes for boundary marking
Landscaping & Finishing

Final Curb Appeal

  • Grading equipment levels soil and dirt piles
  • Freshly laid sod, gravel/aggregate for driveways
  • Newly planted trees, shrubs, and grass seed bags
  • Mailbox and permanent curbing installed as final touches
Landscaping
Freshly laid sod and planted trees
Mailbox signage
Mailbox and signage — transition to residence

Material & Equipment Categories

Grouping individual observations into broader categories reveals the true scale of each operational area. Structural materials account for the highest combined volume, while site logistics — dumpsters, fencing, and worker facilities — represent a surprisingly large and sustained presence throughout the project, underscoring how much infrastructure is needed just to support the build itself.

Object Category Frequently Observed Items Use in Project
Heavy Machinery Excavator, Dump Truck, Concrete Mixer, Crane Earthmoving, material hauling, and foundation pouring
Structural Materials Lumber (42), Plywood (35), Rebar, Concrete Forms Main framing and foundation support
Site Logistics Dumpster (26), Fencing (22), Portable Toilet, Sheds Waste management, security, and worker facilities
Hand Tools / Misc Shovels, Wheelbarrows, Ladders (14), Sawhorses Groundwork, site cleaning, and multi-level framing access
Landscaping Sod, Trees, Shrubs, Grading Equipment, Stakes Exterior finishing and property demarcation

Specialized Construction Equipment

Beyond common materials, several specialized machines played targeted roles at critical stages of the build. Each piece of equipment was tied to a specific task window — cranes and mixers for the foundation phase, storage containers and portable toilets sustaining long-term operations, and traffic cones and signage maintaining public safety throughout.

Foundation Support

A concrete mixer truck and concrete hose were utilized for precise foundation and wall pouring, ensuring structural integrity from the ground up.

Lifting & Transport

A crane was present on-site alongside flatbed trucks and trailers for delivering large-scale structural assemblies and heavy materials.

Logistical Support

A red storage container, utility sheds, and a portable toilet established the long-term operational base for workers on-site.

Safety & Traffic

Orange traffic cones and construction signs managed the interface between the active construction site and the public road throughout the project.

🏗️ Modular / Prefabricated Construction Evidence

Visual logs suggest this project utilized modular or prefabricated components rather than purely traditional stick-built methods, enabling faster structural assembly and reduced on-site labour.

Completion Indicators

The transition from construction site to finished home is captured through a set of clear visual markers identified in the final frames. The disappearance of heavy machinery, the arrival of a mailbox, and the greening of the lawn all signal the same thing: the project has crossed from the build phase into the occupancy phase — a complete residential property ready for its first residents.

Infrastructure & Utilities

  • Utility poles and utility sheds installed mid-to-late stages
  • Exposed pipes and post holes for drainage and utility connections
  • Survey stakes used to mark property lines and landscaping boundaries
  • Driveway poured and sidewalk connected to street infrastructure

Final Aesthetics & Signage

  • Structure status evolved from "Construction Site" to "Finished Dwelling"
  • New lawn, grass, and freshly planted trees signal end of heavy machinery phase
  • Mailbox (10 observations) signifying near-occupancy readiness
  • Signs on lawn served as property information, permits, or contractor ads

Exterior Architectural Finishes

  • Windows, doors, and siding completing the building envelope
  • Roofing shingles applied after roof truss placement
  • Brick accents and white siding giving final exterior character
  • Driveway and sidewalk access infrastructure completed late-stage

Operational Observations

  • Construction debris second-most observed (38 times), requiring constant dumpster presence
  • Cones and fencing managed site perimeter throughout all phases
  • Wooden and survey stakes used early and late for boundaries
  • Waste and debris management critical at every stage of build
